N° de commande | Longueur d´arbre maxi | a | C4 | A3 | C5=C6 | h | h1 | K1* | ly | lz | Poids du rail | Prix / m | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
[L max.] | min. | max. | [mm2] | [mm2] | [g/m] | |||||||||
NS-01-27 | 3000 | 27 | 60 | 0 | 20 | 20/49,5 | 9 | 1,1 | M4 | 6524 | 588 | 290 | 24,54 EUR | |
NS-01-27-UNGEBOHRT | 3000 | 27 | 0 | 0 | 0 | 9 | 1,1 | 0 | 6524 | 588 | 290 | 22,32 EUR | ||
NS-01-27-AR | 3000 | 27 | 60 | 0 | 20 | 20/49,5 | 9 | 1,1 | M4 | 6524 | 588 | 290 | 28,66 EUR |
Pour les rails non percés, veuillez indiquer "non percé" dans la remarque.
* Pour vis cylindrique à tête basse
N° de commande | Désignation | Poids du patin | ||
---|---|---|---|---|
[g] | ||||
NW-11-27-80-LLY | Chariot à trous lamés, patin flottant dans l´axe y | 25 | 6,51 EUR | |
NW-11-27-80-LLZ | Chariot à trous lamés, patin flottant dans l´axe z | 25 | 6,51 EUR | |
NW-11-27-80-LLYZ | Chariot à trous lamés, patin flottant dans les axes y et z | 25 | 6,51 EUR |

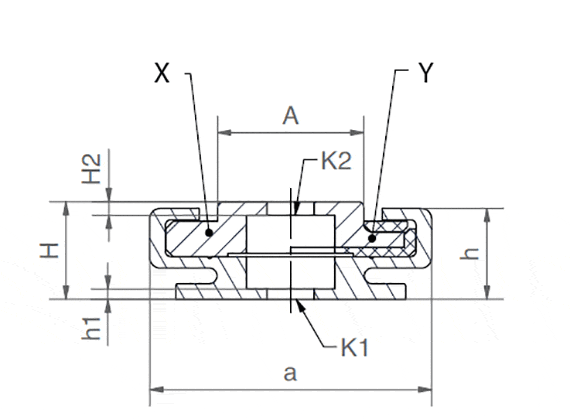

Réf. : | H | A | C | C1 | C2 | A2 | H2 | K2 | K3 | K4 | Spmin. | DpØmin. | Weight |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
±0,35 | [g/m] | ||||||||||||
NW-11-27-80-LLY | 9,5 | 14 | 80 | 76 | 60 | 0 | 1,5 | 0 | 0 | 25 | |||
NW-11-27-80-LLZ | 9,5 | 14 | 80 | 76 | 60 | 0 | 1,5 | 0 | 0 | 25 | |||
NW-11-27-80-LLYZ | 9,5 | 14 | 80 | 76 | 60 | 0 | 1,5 | 0 | 0 | 25 |
Pas de palier flottant
2Patin flottant dans l'axe Z
3Patin flottant dans l'axe Y
4Patin flottant dans l'axe y et z
Indiquez le nombre de patins souhaités.
